> 외형치수도 |
|
|
|
|
1. 일단 감속기 외형치수 (Single Stage
Planetary Gearhead)
|
|
|
|
(단위 : mm)
|
|
|
|
|
|

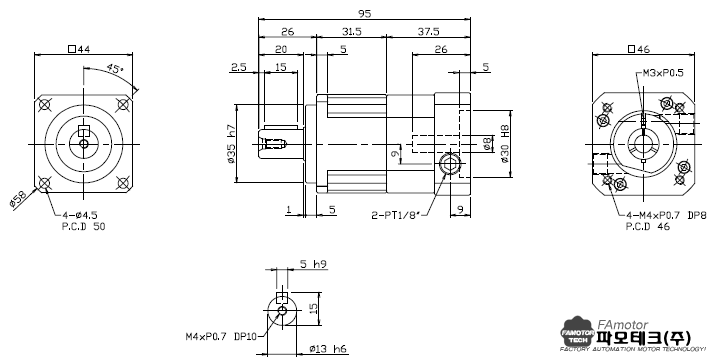

① PGX44-H 1단
감속기 DIMENSIONS
|
|
PGX44-H-3,
PGX44-H-4, PGX44-H-5, PGX44-H-6, PGX44-H-7, PGX44-H-8, PGX44-H-9,
PGX44-H-10 |
|
PGX
44각
1단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 0.58Kg
|
|

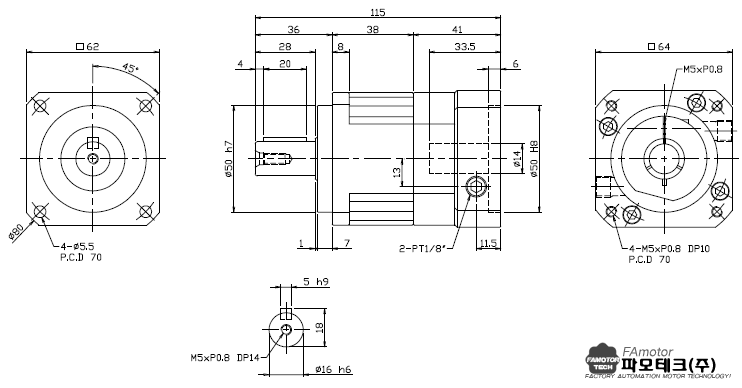

② PGX62-H SINGLE STAGE DIMENSIONS
|
|
PGX62-H-3,
PGX62-H-4, PGX62-H-5, PGX62-H-6, PGX62-H-7, PGX62-H-8, PGX62-H-9,
PGX62-H-10, |
|
PGX
62각
1단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 1.37Kg
|
|

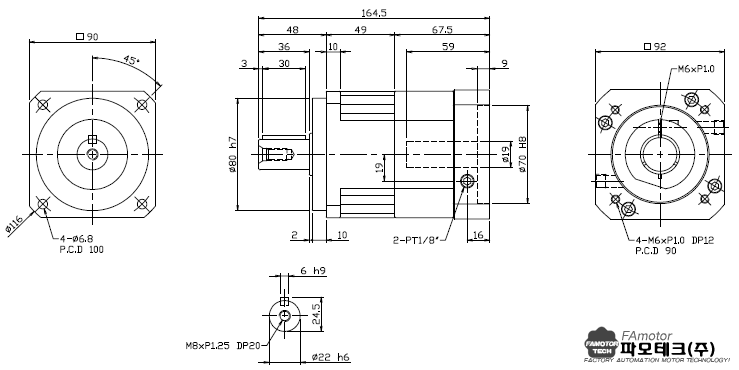

③ PGX90-H SINGLE STAGE DIMENSIONS
|
|
PGX90-H-3,
PGX90-H-4, PGX90-H-5, PGX90-H-6, PGX90-H-7, PGX90-H-8, PGX90-H-9,
PGX90-H-10, |
|
PGX
90각
1단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 3.90Kg
|
|

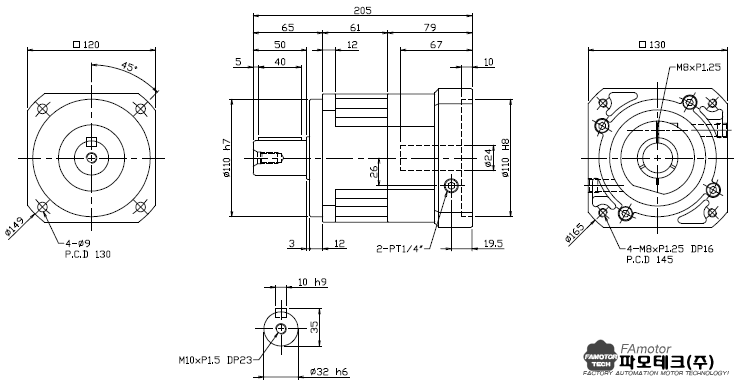

④ PGX120-H SINGLE STAGE DIMENSIONS
|
|
PGX120-H-3,
PGX120-H-4, PGX120-H-5, PGX120-H-6, PGX120-H-7, PGX120-H-8, PGX120-H-9,
PGX120-H-10 |
|
PGX
120각
1단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 8.00Kg
|
|

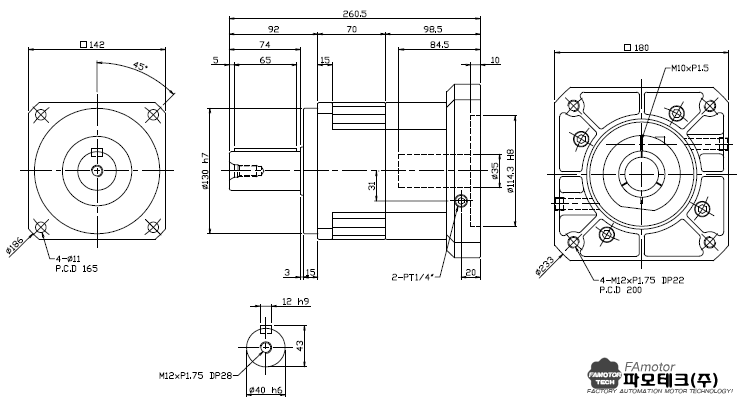

⑤ PGX142-H SINGLE STAGE DIMENSIONS
|
|
PGX142-H-3,
PGX142-H-4, PGX142-H-5, PGX142-H-6, PGX142-H-7, PGX142-H-8, PGX142-H-9,
PGX142-H-10 |
|
PGX
142각
1단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 14.10Kg
|
|
⑥ PGX180-H SINGLE STAGE DIMENSIONS
|
|
PGX180-H-3,
PGX180-H-4, PGX180-H-5, PGX180-H-6, PGX180-H-7, PGX180-H-8, PGX180-H-9,
PGX180-H-10 |
|
PGX
180각 1단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 00.00Kg
|
|
2. 이단 감속기 외형치수 (Double Stage
Planetary Gearhead)
|
|
|
|
(단위:mm)
|
|
|
|
★ 일단/이단 외형치수 참고사항
• 주문시 Servo Motor의 사양을
알려주시면 조립Bracket는 제작하여 생산합니다.
※ 본제품의 규격은 품질개선을 위하여
예고없이 변경될 수 있습니다.
|
|
|
|

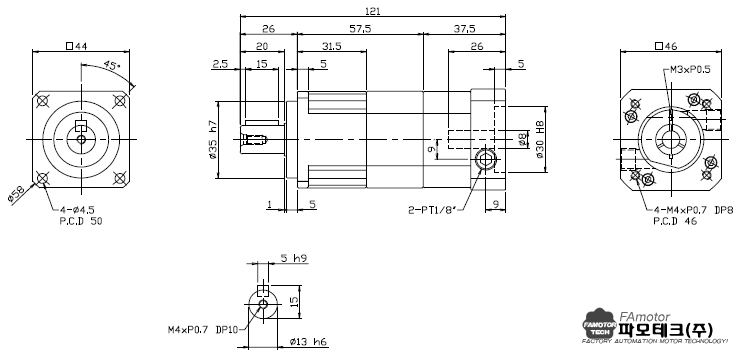

① PGX44-H DOUBLE STAGE DIMENSIONS
|
|
PGX44-H-15,
PGX44-H-20, PGX44-H-25, PGX44-H-30, PGX44-H-35, PGX44-H-40, PGX44-H-50,
PGX44-H-60, PGX44-H-70, PGX44-H-80, PGX44-H-90, PGX44-H-100 |
|
PGX
44각
2단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 0.86Kg
|
|

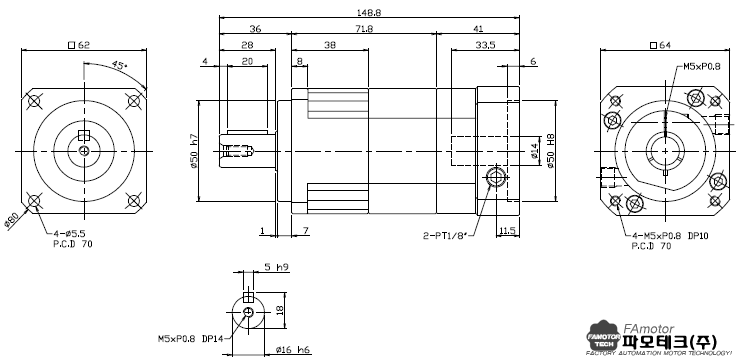

② PGX62-H DOUBLE STAGE DIMENSIONS
|
|
PGX62-H-15,
PGX62-H-20, PGX62-H-25, PGX62-H-30, PGX62-H-35, PGX62-H-40, PGX62-H-50,
PGX62-H-60, PGX62-H-70, PGX62-H-80, PGX62-H-90, PGX62-H-100 |
|
PGX
62각
2단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 2.10Kg
|
|

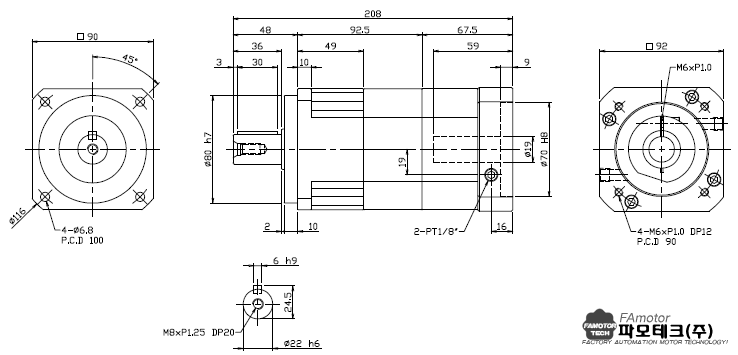

③ PGX90-H DOUBLE STAGE DIMENSIONS
|
|
PGX90-H-15,
PGX90-H-20, PGX90-H-25, PGX90-H-30, PGX90-H-35, PGX90-H-40, PGX90-H-50,
PGX90-H-60, PGX90-H-70, PGX90-H-80, PGX90-H-90, PGX90-H-100 |
|
PGX
90각
2단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 5.48Kg
|
|

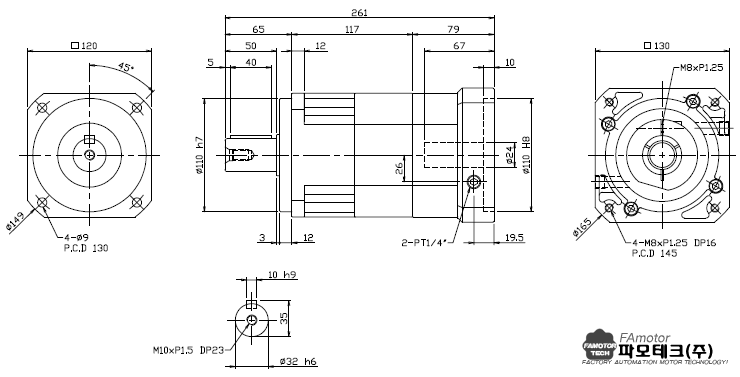

④ PGX120-H DOUBLE STAGE DIMENSIONS
|
|
PGX120-H-15,
PGX120-H-20, PGX120-H-25, PGX120-H-30, PGX120-H-35, PGX120-H-40, PGX120-H-50,
PGX120-H-60, PGX120-H-70, PGX120-H-80, PGX120-H-90, PGX120-H-100 |
|
PGX
120각
2단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 12.90Kg
|
|

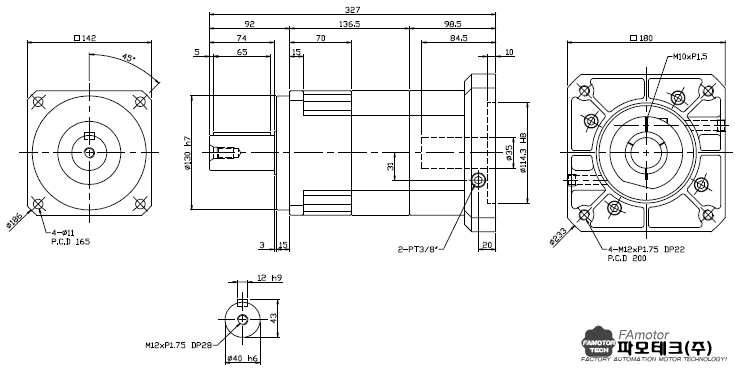

⑤ PGX142-H DOUBLE STAGE DIMENSIONS
|
|
PGX142-H-15,
PGX142-H-20, PGX142-H-25, PGX142-H-30, PGX142-H-35, PGX142-H-40, PGX142-H-50,
PGX142-H-60, PGX142-H-70, PGX142-H-80, PGX142-H-90, PGX142-H-100 |
|
PGX
142각
2단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
중량 : 22.80Kg
|
|
⑥ PGX180-H DOUBLE STAGE DIMENSIONS
|
|
PGX180-H-15,
PGX180-H-20, PGX180-H-25, PGX180-H-30, PGX180-H-35, PGX180-H-40, PGX180-H-50,
PGX180-H-60, PGX180-H-70, PGX180-H-80, PGX180-H-90, PGX180-H-100 |
|
PGX
180각 2단 외형치수도
|
|
DWG
FILE
|
|
PDF
FILE
|
|
|
|
|
|
|
중량 : 00.00Kg
|
|
|
