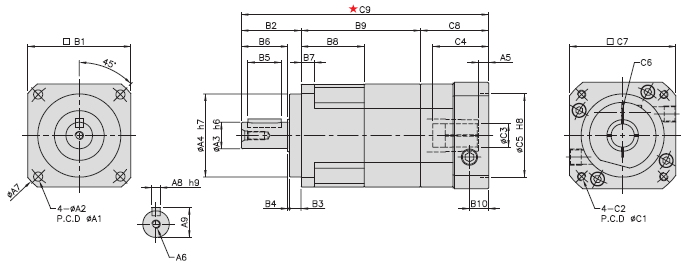

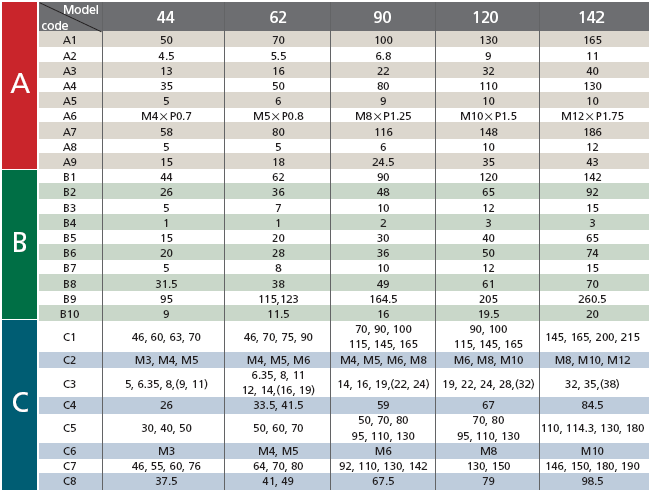

■ PGX-H 1단(SINGLE REDUCE) 감속기 외형치수
|
|
(PGX44-H, PGX62-H, PGX90-H, PGX120-H, PGX142-H)
|

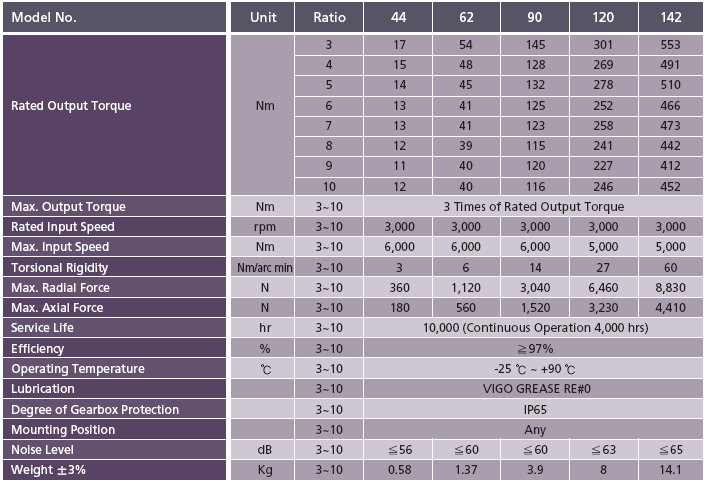

| 1단 감속기(감속비율 : 3, 4, 5, 6, 7, 8, 9, 10) |
| |
|
|
|
|
|
|
|
|
|

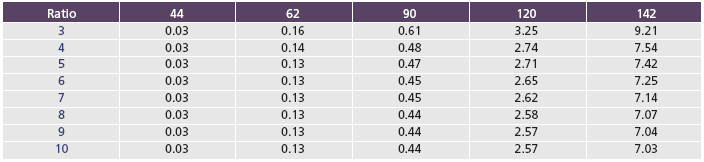

■ Mass Moments of Inertia (kg·cm2)
|
|
|
|
|
|
|
|
|
| |
|

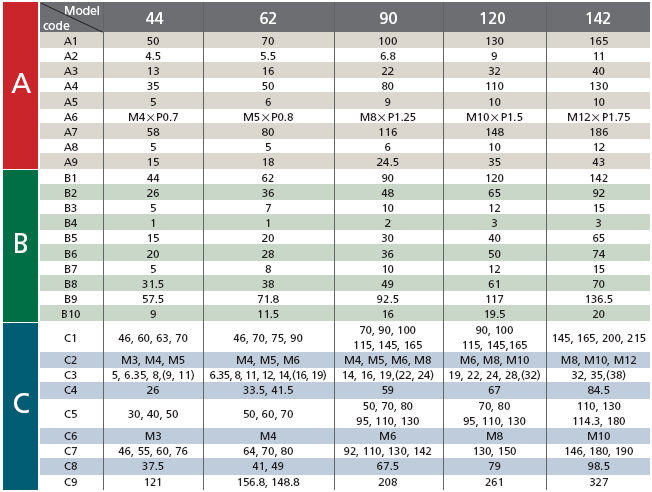

■ PGX-H 2단(DOUBLE REDUCE) 감속기 외형치수
|
|
(PGX44-H, PGX62-H, PGX90-H, PGX120-H, PGX142-H)
|

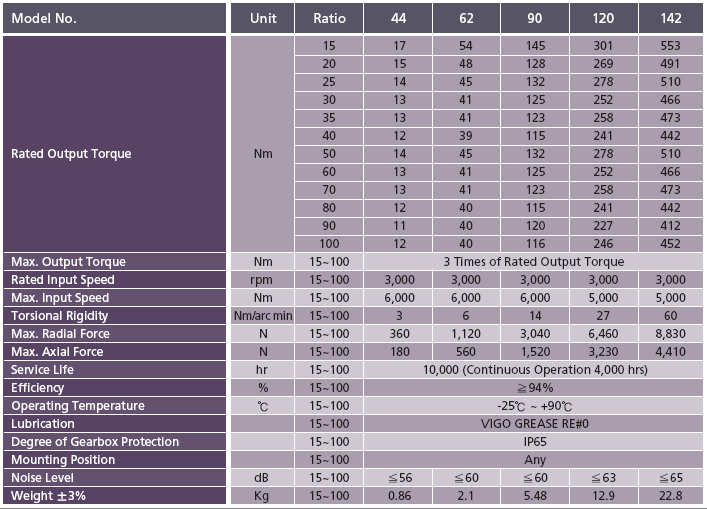

| 2단 감속기(감속비율 : 15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100) |
|
|
|
|
|
|
|
|
|
|

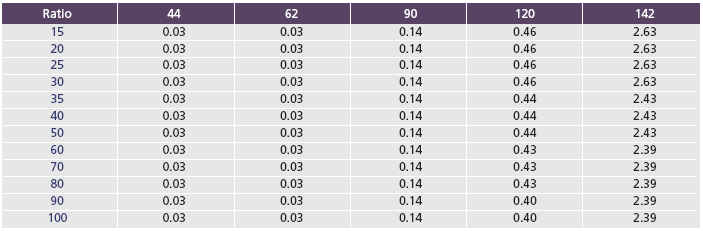

| ■ Mass Moments of Inertia (kg·cm2)
|
|
|
|
|
|
|
|
|
| |
|
