> Apex 감속기 > ANR 시리즈 |
|
|
|

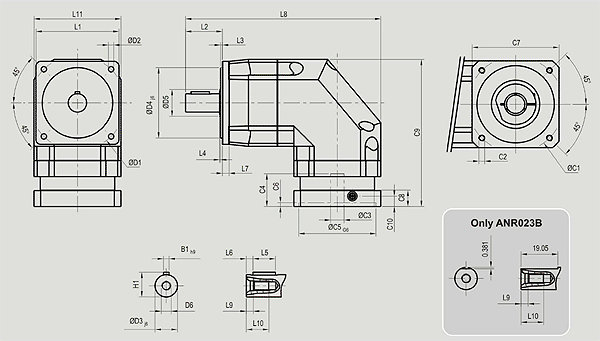

 1-stage , Ratio i = 5 , 10
|
|
|
|
Dimension |
ANR023 |
ANR023B |
ANR034 |
ANR034B |
|
D1 |
66.675 |
66.675 |
98.425 |
98.425 |
|
D2 |
5.6 |
5.6 |
5.6 |
5.6 |
|
D3j6 |
12.7 |
9.525 |
19.05 |
12.7 |
|
D4j6 |
38.1 |
38.1 |
73.025 |
73.025 |
|
D5 |
22 |
22 |
30 |
30 |
|
D6 |
M5x0.8P |
M4x0.7P |
M8x1.25P |
M5x0.8P |
|
L1 |
60 |
60 |
86 |
86 |
|
L2 |
31.8 |
25.4 |
38.1 |
31.8 |
|
L3 |
2 |
2 |
2 |
2 |
|
L4 |
1 |
1 |
1 |
1 |
|
L5 |
19.05 |
- |
19.05 |
19.05 |
|
L6 |
3.8 |
- |
5.7 |
3.8 |
|
L7 |
6 |
6 |
7 |
7 |
|
L8 |
143.3 |
136.9 |
202.1 |
195.8 |
|
L9 |
4.8 |
4.5 |
7.2 |
4.8 |
|
L10 |
12.5 |
10 |
19 |
12.5 |
|
L11 |
60 |
60 |
90 |
90 |
|
C1³ |
66.675 |
66.675 |
98.425 |
98.425 |
|
C2³ |
M5x0.8P |
M5x0.8P |
M5x0.8P |
M5x0.8P |
|
C3³ |
≤ 14 / ≤16 |
≤14 / ≤16 |
≤19 / ≤24 |
≤19 / ≤24 |
|
C4³ |
40 |
40 |
40 |
40 |
|
C5³G6 |
38.15 |
38.15 |
73.08 |
73.08 |
|
C6³ |
4 |
4 |
4 |
4 |
|
C7³ |
58 |
58 |
85 |
85 |
|
C8³ |
25 |
25 |
17 |
17 |
|
C9³ |
117.5 |
117.5 |
152.5 |
152.5 |
|
C10³ |
19.5 |
19.5 |
10.75 |
10.75 |
|
B1h9 |
3.175 |
- |
4.763 |
3.175 |
|
H1 |
14.125 |
- |
21.113 |
14.125 |
|
|
|
|
3. C1~C10 are motor specific dimensions (nema std
shown). |
|
|
|

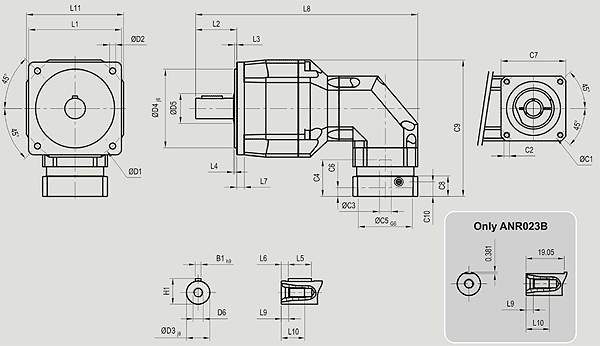

2-stage , Ratio i = 25 ,50 , 100 |
|
|
|
Dimension |
ANR023 |
ANR023B |
ANR034 |
ANR034B |
|
D1 |
66.675 |
66.675 |
98.425 |
98.425 |
|
D2 |
5.6 |
5.6 |
5.6 |
5.6 |
|
D3j6 |
12.7 |
9.525 |
19.05 |
12.7 |
|
D4j6 |
38.1 |
38.1 |
73.025 |
73.025 |
|
D5 |
22 |
22 |
30 |
30 |
|
D6 |
M5x0.8P |
M4x0.7P |
M8x1.25P |
M5x0.8P |
|
L1 |
60 |
60 |
86 |
86 |
|
L2 |
31.8 |
25.4 |
38.1 |
31.8 |
|
L3 |
2 |
2 |
2 |
2 |
|
L4 |
1 |
1 |
1 |
1 |
|
L5 |
19.05 |
- |
19.05 |
19.05 |
|
L6 |
3.8 |
- |
5.7 |
3.8 |
|
L7 |
6 |
6 |
7 |
7 |
|
L8 |
161.8 |
155.4 |
205.6 |
199.3 |
|
L9 |
4.8 |
4.5 |
7.2 |
4.8 |
|
L10 |
12.5 |
10 |
19 |
12.5 |
|
L11 |
60 |
60 |
90 |
90 |
|
C14 |
66.675 |
66.675 |
66.675 |
66.675 |
|
C24 |
M5x0.8P |
M5x0.8P |
M5x0.8P |
M5x0.8P |
|
C34 |
≤ 11 / ≤12 |
≤ 11 / ≤12 |
≤ 14 / ≤16 |
≤ 14 / ≤16 |
|
C44 |
32 |
32 |
40 |
40 |
|
C54G6 |
38.15 |
38.15 |
38.15 |
38.15 |
|
C64 |
3.5 |
3.5 |
4 |
4 |
|
C74 |
55 |
55 |
58 |
58 |
|
C84 |
36.5 |
36.5 |
25 |
25 |
|
C94 |
106.5 |
106.5 |
132.5 |
132.5 |
|
C104 |
15.75 |
15.75 |
19.5 |
19.5 |
|
B1h9 |
3.175 |
- |
4.763 |
3.175 |
|
H1 |
14.125 |
- |
21.113 |
14.125 |
|
|
|
|
4. C1~C10 are motor specific dimensions (Nema
std shown). |
|
|
|

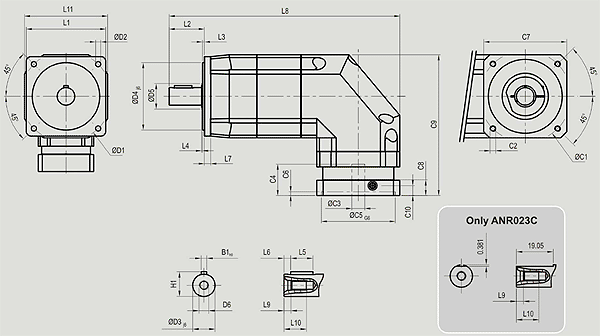

2-stage , Ratio i = 25 ,50 , 100 (For motor with
large shaft diameters) |
|
|
|
Dimension |
ANR023A |
ANR023C |
ANR034A |
ANR034C |
|
D1 |
66.675 |
66.675 |
98.425 |
98.425 |
|
D2 |
5.6 |
5.6 |
5.6 |
5.6 |
|
D3j6 |
12.7 |
9.525 |
19.05 |
12.7 |
|
D4j6 |
38.1 |
38.1 |
73.025 |
73.025 |
|
D5 |
22 |
22 |
30 |
30 |
|
D6 |
M5x0.8P |
M4x0.7P |
M8x1.25P |
M5x0.8P |
|
L1 |
60 |
60 |
86 |
86 |
|
L2 |
31.8 |
25.4 |
38.1 |
31.8 |
|
L3 |
2 |
2 |
2 |
2 |
|
L4 |
1 |
1 |
1 |
1 |
|
L5 |
19.05 |
- |
19.05 |
19.05 |
|
L6 |
3.8 |
- |
5.7 |
3.8 |
|
L7 |
6 |
6 |
7 |
7 |
|
L8 |
180.3 |
173.9 |
250.1 |
243.8 |
|
L9 |
4.8 |
4.5 |
7.2 |
4.8 |
|
L10 |
12.5 |
10 |
19 |
12.5 |
|
L11 |
60 |
60 |
90 |
90 |
|
C14 |
66.675 |
66.675 |
98.425 |
98.425 |
|
C24 |
M5x0.8P |
M5x0.8P |
M5x0.8P |
M5x0.8P |
|
C34 |
≤ 14 / ≤16 |
≤ 14 / ≤16 |
≤ 19 / ≤24 |
≤ 19 / ≤24 |
|
C44 |
40 |
40 |
40 |
40 |
|
C54G6 |
38.15 |
38.15 |
73.08 |
73.08 |
|
C64 |
4 |
4 |
4 |
4 |
|
C74 |
58 |
58 |
85 |
85 |
|
C84 |
25 |
25 |
17 |
17 |
|
C94 |
117.5 |
117.5 |
152.5 |
152.5 |
|
C104 |
19.5 |
19.5 |
10.75 |
10.75 |
|
B1h9 |
3.175 |
- |
4.763 |
3.175 |
|
H1 |
14.125 |
- |
21.113 |
14.125 |
|
|
|
|
4. C1~C10 are motor specific dimensions (Nema
std shown). |
|
|
|
|
