> Apex 감속기 > ALR 시리즈 |
|
|
|

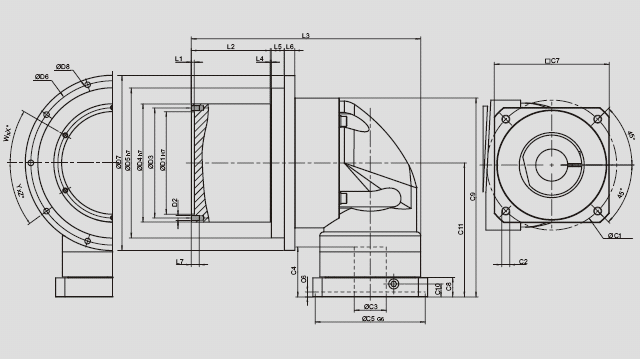

 1-stage , Ratio i =2 ~ 10
|
|
|
|
|
ALR070 |
ALR095 |
ALR110 |
ALR150 |
ALR190 |
ALR230 |
ALR280 |
|
D1H7 |
37.5 |
55.5 |
70.5 |
102.5 |
132.5 |
168.5 |
204.5 |
|
D2 |
M3 x 0.5P |
M3 x 0.5P |
M4 x 0.7P |
M5 x 0.8P |
M5 x 0.8P |
M6 x 1P |
M6 x 1P |
|
D3 |
42 |
61.5 |
78.5 |
110 |
142.5 |
179 |
216 |
|
D4h7 |
47.7 |
67.3 |
87.3 |
118.1 |
152.8 |
190 |
229.2 |
|
D5h7 |
70 |
95 |
110 |
150 |
190 |
230 |
280 |
|
D6 |
80 |
108 |
124 |
164 |
208 |
246 |
296 |
|
D7 |
90 |
120 |
135 |
175 |
225 |
262 |
312 |
|
D8 |
4.5 |
5.5 |
5.5 |
5.5 |
9 |
9 |
9 |
|
L1 |
3 |
3 |
3 |
3 |
4 |
3 |
3 |
|
L2 |
36 |
55.5 |
60.5 |
79 |
94 |
115 |
116 |
|
L3 |
106.5 |
144 |
183.5 |
229.5 |
278 |
339.5 |
382.5 |
|
L4 |
0.5 |
0.5 |
0.5 |
1 |
1 |
1.5 |
1.5 |
|
L5 |
6 |
7 |
10 |
13 |
15 |
18 |
22 |
|
L6 |
6 |
7 |
7.5 |
10.5 |
12 |
15 |
18 |
|
L7 |
6 |
6 |
8 |
9 |
9 |
11 |
11 |
|
C1 3
|
46 |
70 |
100 |
130 |
165 |
215 |
235 |
|
C2 3
|
M4 X 0.7P |
M5 X 0.8P |
M6 X 0.1P |
M8 X 1.25P |
M10 X 1.5P |
M12 X 1.75P |
M12 X 1.75P |
|
C3 3
|
≤11 |
≤14 / ≤16 |
≤19 / ≤24 |
≤32 |
≤38 |
≤48 |
≤55 |
|
C4 3
|
30 |
34 |
40 |
50 |
60 |
85 |
116 |
|
C5 3
G6 |
30 |
50 |
80 |
110 |
130 |
180 |
200 |
|
C6 3
|
3.5 |
8 |
4 |
5 |
6 |
6 |
6 |
|
C7 3
|
48 |
60 |
90 |
115 |
142 |
190 |
220 |
|
C8 3
|
19.5 |
19 |
17 |
19.5 |
22.5 |
29 |
63 |
|
C9 3
|
100.5 |
116.5 |
159.5 |
199 |
245.5 |
316 |
398.5 |
|
C10 3
|
13.25 |
13.5 |
10.75 |
13 |
15 |
20.75 |
53.5 |
|
C11 3
|
74 |
81.5 |
107.5 |
134 |
164.5 |
213.5 |
268.5 |
|
W |
6 |
8 |
8 |
8 |
12 |
12 |
12 |
|
X |
60 |
45 |
45 |
45 |
30 |
30 |
30 |
|
Y |
6 |
10 |
10 |
10 |
10 |
10 |
12 |
|
Z |
60 |
36 |
36 |
36 |
36 |
36 |
30 | |
|
|
|
3. C1~C10 are motor specific dimensions (metric std
shown). |
|
|
|
2-stage , Ratio i =
15 ~ 180 |
|
|
|
|
ALR070 |
ALR095 |
ALR110 |
ALR150 |
ALR190 |
ALR230 |
ALR280 |
|
D1H7 |
37.5 |
55.5 |
70.5 |
102.5 |
132.5 |
168.5 |
204.5 |
|
D2 |
M3 x 0.5P |
M3 x 0.5P |
M4 x 0.7P |
M5 x 0.8P |
M5 x 0.8P |
M6 x 1P |
M6 x 1P |
|
D3 |
42 |
61.5 |
78.5 |
110 |
142.5 |
179 |
216 |
|
D4h7 |
47.7 |
67.3 |
87.3 |
118.1 |
152.8 |
190 |
229.2 |
|
D5h7 |
70 |
95 |
110 |
150 |
190 |
230 |
280 |
|
D6 |
80 |
108 |
124 |
164 |
208 |
246 |
296 |
|
D7 |
90 |
120 |
135 |
175 |
225 |
262 |
312 |
|
D8 |
4.5 |
5.5 |
5.5 |
5.5 |
9 |
9 |
9 |
|
L1 |
3 |
3 |
3 |
3 |
4 |
3 |
3 |
|
L2 |
36 |
55.5 |
60.5 |
79 |
94 |
115 |
116 |
|
L3 |
122.5 |
141.5 |
164.5 |
222.5 |
266 |
327.5 |
374 |
|
L4 |
0.5 |
0.5 |
0.5 |
1 |
1 |
1.5 |
1.5 |
|
L5 |
6 |
7 |
10 |
13 |
15 |
18 |
22 |
|
L6 |
6 |
7 |
7.5 |
10.5 |
12 |
15 |
18 |
|
L7 |
6 |
6 |
8 |
9 |
9 |
11 |
11 |
|
C1 3
|
46 |
46 |
70 |
100 |
130 |
165 |
215 |
|
C2 3
|
M4 X 0.7P |
M4 X 0.7P |
M5 X 0.8P |
M6 X 0.1P |
M8 X 1.25P |
M10 X 1.5P |
M12 X 1.75P |
|
C3 3
|
≤11 |
≤11 / ≤12 |
≤14 / ≤15.875 / ≤16 |
≤19 / ≤24 |
≤32 |
≤38 |
≤48 |
|
C4 3
|
30 |
30 |
34 |
40 |
50 |
60 |
85 |
|
C5 3
G6 |
30 |
30 |
50 |
80 |
110 |
130 |
180 |
|
C6 3
|
3.5 |
3.5 |
8 |
4 |
5 |
6 |
6 |
|
C7 3
|
48 |
48 |
60 |
90 |
115 |
142 |
190 |
|
C8 3
|
19.5 |
19.5 |
19 |
17 |
19.5 |
22.5 |
29 |
|
C9 3
|
100.5 |
105 |
122.5 |
165.5 |
206.5 |
253.5 |
325.5 |
|
C10 3
|
13.25 |
13.25 |
13.5 |
10.75 |
13 |
15 |
20.75 |
|
C11 3
|
74 |
74 |
81.5 |
107.5 |
134 |
164.5 |
213.5 |
|
W |
6 |
8 |
8 |
8 |
12 |
12 |
12 |
|
X |
60 |
45 |
45 |
45 |
30 |
30 |
30 |
|
Y |
6 |
10 |
10 |
10 |
10 |
10 |
12 |
|
Z |
60 |
36 |
36 |
36 |
36 |
36 |
30 | |
|
|
|
4. C1~C10 are motor specific dimensions
(metric std shown). |
|
|
|
|
