Home > Apex 감속기 > AF 시리즈

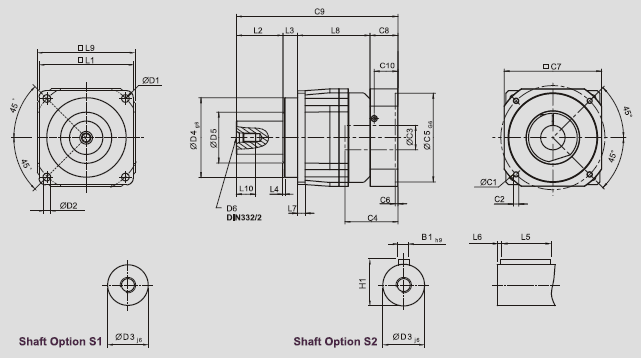

 1-stage , Ratio i = 3 ~ 10



AF042

AF060

AF075

AF100

AF140

AF180

AF220

D1

50

68

85

120

165

215

250

D2

3.4

5.5

6.8

9

11

13

17

D3 j6

13

16

22

32

40

55

75

D4 g6

35

60

70

90

130

160

180

D5

22

45

60

80

75

95

115

D6

M4 X 0.7P

M5 X 0.8P

M8 X 1.25P

M12X1.75P

M16 X 2P

M20 X 2.5P

M20 X 2.5P

L1

42

62

76

105

142

180

220

L2

19.5

28.5

36

58

82

82

105

L3

6.5

20

20

30

30

30

33

L4

1

1.5

2

2

3

3

3

L5

16

25

32

40

63

70

90

L6

2

2

3

5

5

6

7

L7

4

6

7

10

12

15

20

L8

31

54.5

86.5

89.5

110

150

163.5

L9

42

60

90

115

142

180

220

L10

10

12.5

19

28

36

42

42

C1 3

46

70

100

130

165

215

235

C2 3

M4 X 0.7P

M5 X 0.8P

M6 X 1P

M8 X 1.25P

M10 X 1.5P

M12 X 1.75P

M12 X 1.75P

C3 3

≤11

*≤14 / ≤16

≤19 / ≤24

≤32

≤38

≤48

≤55

C4 3

25

34

40

50

60

85

116

    C5 3 G6

30

50

80

110

130

180

200

C63

3.5

8

4

5

6

6

6

C7 3

42

60

90

115

142

190

220

C8 3

29.5

19

17

19.5

22.5

29

63

C9 3

86.5

122

159.5

197

244.5

291

364.5

  C10 3

8.75

13.5

10.75

13

15

20.75

53

  B1 h9

5

5

6

10

12

16

20

H1

15

18

24.5

35

43

59

79.5



3. C1~C10 are motor specific dimensions (metric std shown).
* AF060 ratio 5,10 offers C3 ≤16 option.

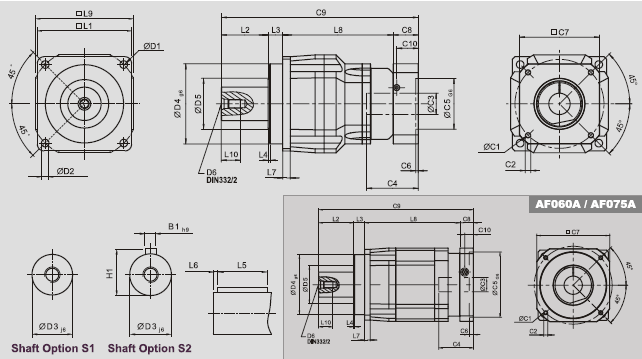

 2-stage , Ratio i = 15 ~ 100



AF042

AF060

AF060A

AF075

AF075A

AF100

AF140

AF180

AF220

D1

50

68

85

120

165

215

250

D2

3.4

5.5

6.8

9

11

13

17

D3 j6

13

16

22

32

40

55

75

D4 g6

35

60

70

90

130

160

180

D5

22

45

60

80

75

95

115

D6

M4 X 0.7P

M5 X 0.8P

M8 X 1.25P

M12 X1.75P

M16 X 2P

M20 X 2.5P

M20 X 2.5P

L1

42

62

76

105

142

180

220

L2

19.5

28.5

36

58

82

82

105

L3

6.5

20

20

30

30

30

33

L4

1

1.5

2

2

3

3

3

L5

16

25

32

40

63

70

90

L6

2

2

3

5

5

6

7

L7

4

6

7

10

12

15

20

L8

58.5

65.5

93.5

100.5

125.5

157.5

178.5

L9

42

60

90

115

142

180

220

L10

10

12.5

19

28

36

42

42

C1 4

46

46

91.5

119.5

134.5

131

166.5

205.5

248

C2 4

M4 X 0.7P

M4 X 0.7P

M5 X 0.8P

M5 X 0.8P

M6 X 1P

M6 X 1P

M8 X 1.25P

M10 X 1.5P

M12 X 1.75P

C3 4

≤11

*≤11 / ≤12

* ≤14 /
≤16

* ≤14 /
≤15.875 /
≤16

≤19 / ≤24

≤19 / ≤24

≤32

≤38

≤48

C4 4

25

25

34

34

40

40

50

60

85

    C5 4 G6

30

30

50

50

80

80

110

130

180

C6 4

3.5

3.5

8

8

4

4

5

6

6

C7 4

42

42

60

60

90

90

115

142

190

C8 4

29.5

29.5

19

19

17

17

19.5

22.5

29

C9 4

114

143.5

159

194.5

207.5

236

298

340

415

  C10 4

8.75

8.75

13.5

13.5

10.75

10.75

13

15

20.75

  B1 h9

5

5

6

10

12

16

20

H1

15

18

24.5

35

43

59

79.5



4. C1~C10 are motor specific dimensions (metric std shown).
* AF060 ratio 15~50 offers C3 ≤12 option.
* AF075 ratio 15~50 offers C3 ≤15.875 / ≤16 option.
