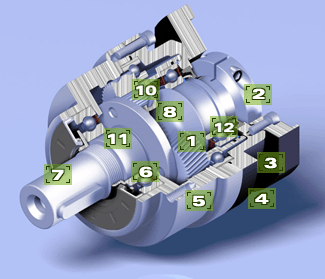

1. True Helical Gear Design |
|
Precision helical gearing increases tooth to tooth contact ratio
by over 33% vs spur gearing. The helix angle produces smooth and quiet operation
with decreased backlash (less than 8 arc-minutes and ≤
56dB). | |
|
|
|
|
2. Triple split collet with dynamic balanced set
collar clamping system |
|
provides backlash free power transmission and eliminates
slippage. 100% concentricity allows for smooth rotation and higher input speed
capability. | |
|
|
|
|
3. Bushing module system design |
|
The unique motor adapter
and bushing module system design allows for quick and
easy mounting of any motor. | |
|
|
|
|
4. A special non-electrolysis Nickel surface
treatment |
|
A special non-electrolysis nickel surface treatment
on the output housing and black anodized aluminum
input adapter are provided for the most extreme environmental
conditions. | |
|
|
|
|
5.Single piece structured ring gear with
housing |
|
Helical Internal ring gear
is machined directly into a single piece of steel. Maximized diameter and number
of teeth to improve overall performance and torque
capacity. | |
|
|
|
|
6. NYOGEL 792D |
|
Lubricated with Nyogel
792D synthetic grease (smart grease) and sealed to IP65 standards prevents leakage and is maintenance
free. | |
|
|
|
|
7. Whole piece planet carrier
design |
|
One piece planet carrier with extended bearing design
provides maximum radial load capacity and increases system reliability and
stiffness. | |
|
|
|
|
8. In-house plasma nitriding heat
treatment |
|
Our in house plasma nitriding heat treatment process
maintains the tooth surface hardness at 900Hv for
superior wear-resistance and a core hardness at 30HRc
for toughness. | |
|
|
|
|
9. HeliTopo technology |
|
A high setting gear performance is achieved by using
our HeliTopo Technology. This eases off the tooth profile and crowns
the lead of each tooth. This optimizes the gear mesh alignment and
overlap to achieve maximum tooth surface
contact. | |
|
|
|
|
10. Solid needle roller bearings without
cage |
|
Equipped with solid uncaged
needle roller bearings, provides maximum contact points to increase
stiffness and transmit high output torque. | |
|
|
|
|
11.NEW - Patented Output sealing system
design |
|
NEW - Patented output sealing systems
design eliminates friction and heat generation which is accomplished by applying
our hi-tech coating to all output contact surfaces. This coating reaches coating
reaches a hardness of 3700Hv and is ground to Ra 0.2mm finish to ensure
sealing. | |
|
|
|
|
12.NEW - Patented input sealing system
design |
|
NEW - Patented input sealing system design eliminates
break away torque and decreases friction/heat. The hi-tech coating bushing
(3700 Hv, Ra 0.2 mm finish) interfaces with our proprietory seal which
decreases wear and erosion of both sealing surfaces. This new patent prevents
leakage and has a service life of over 20,000
hours. | |
|
|
|
|
13.Patented planet carrier
design |
|
Patented planet carrier
design puts the sun gear bearing directly into the planet carrier. It
minimizes gear misalignment to gain higher
accuracy. | |
|
|
|
|
14.Solid,Single piece sun gear
construction obtains precise concentricity with increased strength and
rigidity. | |
