Apex Korea 감속기 AE 시리즈 AE050,AE070 외형치수

이 부분은 iframe 대응의 브라우저로 봐 주세요. st

ledt 서브메뉴화면(159픽셀)

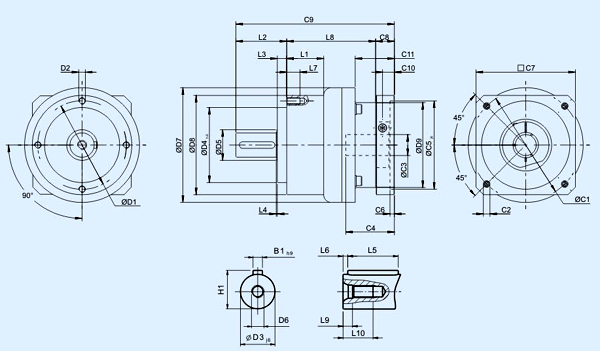

1-stage , Ratio i = 3 ~ 10

	AE050	AE070	AE090	AE120	AE155	AE205	AE235
D1	44	62	80	108	140	184	210
D2	M4 X 0.7P	M5 X 0.8P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P	M16 X 2P
D3 _j6	12	16	22	32	40	55	75
D4 _h6	35	52	68	90	120	160	180
D5	22	22	30	40	75	95	115
D6	M4 X 0.7P	M5 X 0.8P	M8 X 1.25P	M12 X 1.75P	M16 X 2P	M20 X 2.5P	M20 X 2.5P
D7	53	70	104	130	162	205	260
D8	50	70	90	120	155	205	235
D9	45.5	53.4	77	102	125	160	205
L1	--	--	33.5	38	50	--	70
L2	24.5	36	46	70	97	100	126
L3	4	6.5	8.5	17.5	15	15	18
L4	1	1	1	1.5	3	3	3
L5	14	25	32	40	63	70	90
L6	2	2	3	5	5	6	7
L7	8	10	12	16	20	22	28
L8	47	62	80.5	97	119.5	159	175.5
L9	4.5	4.8	7.2	10	12	15	15
L10	10	12.5	19	28	36	42	42
C1 ³	46	70	100	130	165	215	235
C2 ³	M4 X 0.7P	M5 X 0.8P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P	M12 X 1.75P
C3 ³	≤11	*≤14 / ≤16	≤19 / ≤24	≤32	≤38	≤48	≤55
C4 ³	30	34	40	50	60	85	116
C5 ³ _G6	30	50	80	110	130	180	200
C6 ³	3.5	8	4	5	6	6	6
C7 ³	48	60	90	115	142	190	220
C8 ³	19.5	19	17	19.5	22.5	29	63
C9 ³	91	117	143.5	186.5	239	288	364.5
C10 ³	13.25	13.5	10.75	13	15	20.75	53.5
C11 ³	19.5	37	35.5	46	53.5	79.5	106.5
B1 _h9	4	5	6	10	12	16	20
H1	14	18	24.5	35	43	59	79.5

3. C1~C10 are motor specific dimensions (metric std shown).
* AE070 ratio 5,10 offers C3 ≤16 option.

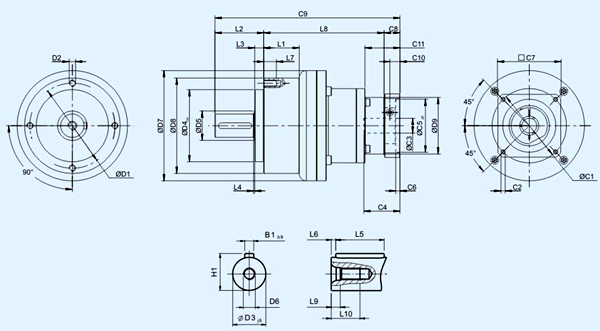

2-stage , Ratio i = 15 ~ 100

	AE050	AE070	AE090	AE120	AE155	AE205	AE235
D1	44	62	80	108	140	184	210
D2	M4 X 0.7P	M5 X 0.8P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P	M16 X 2P
D3 _j6	12	16	22	32	40	55	75
D4 _h6	35	52	68	90	120	160	180
D5	22	22	30	40	75	95	115
D6	M4 X 0.7P	M5 X 0.8P	M8 X 1.25P	M12 X 1.75P	M16 X 2P	M20 X 2.5P	M20 X 2.5P
D7	53	70	104	130	162	205	260
D8	50	70	90	120	155	205	235
D9	45.5	45.5	53.4	77	102	125	160
L1	--	--	33.5	38	50	--	70
L2	24.5	36	46	70	97	100	126
L3	4	6.5	8.5	17.5	15	15	18
L4	1	1	1	1.5	3	3	3
L5	14	25	32	40	63	70	90
L6	2	2	3	5	5	6	7
L7	8	10	12	16	20	22	28
L8	74	87.5	113.5	138.5	176	214.5	260
L9	4.5	4.8	7.2	10	12	15	15
L10	10	12.5	19	28	36	42	42
C1 ⁴	46	46	70	100	130	165	215
C2 ⁴	M4 X 0.7P	M4 X 0.7P	M5 X 0.8P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P
C3 ⁴	≤11	*≤11 / ≤12	* ≤14 / ≤15.875 / ≤16	≤19 / ≤24	≤32	≤38	≤48
C4 ⁴	30	30	34	40	50	60	85
C5 ⁴ _G6	30	30	50	80	110	130	180
C6 ⁴	3.5	3.5	8	4	5	6	6
C7 ⁴	48	48	60	90	115	142	190
C8 ⁴	19.5	19.5	19	17	19.5	22.5	29
C9 ⁴	118	143	178.5	225.5	292.5	337	415
C10 ⁴	13.25	13.25	13.5	10.75	13	15	20.75
C11 ⁴	19.5	19.5	37	35.5	46	53.5	79.5
B1 _h9	4	5	6	10	12	16	20
H1	14	18	24.5	35	43	59	79.5

4. C1~C10 are motor specific dimensions (metric std shown).
* AE070 ratio 15~50 offers C3 ≤12 option.
* AE090 ratio 15~50 offers C3 ≤15.875 / ≤16 option.
