Home > Apex 감속기 > ADR 시리즈

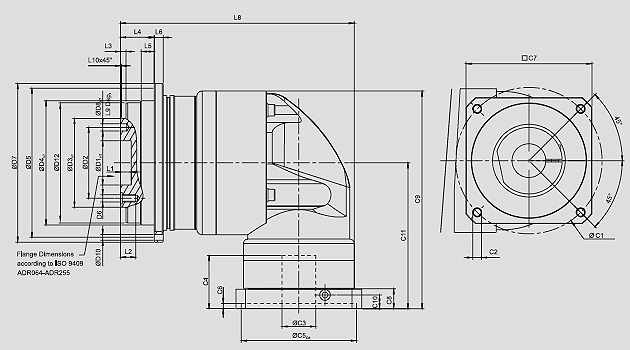

1-stage , Ratio i = 4 ~ 20

	ADR047	ADR064	ADR090	ADR110	ADR140	ADR200	ADR255
D1_H7	12	20	31.5	40	50	80	100
D2	20	31.5	50	63	80	125	140
D3_h7	28	40	63	80	100	160	180
D4_h7	47	64	90	110	140	200	255
D5	67	79	109	135	168	233	280
D6	4 X M3 X 0.5P	7 X M5 X 0.8P	7 X M6 X 1P	11 X M6 X 1P	11 X M8 X 1.25P	11 X M10 X 1.5P	12 X M16 X 2P
D7	72	86	118	145	179	247	300
D8_H7	3	5	6	6	8	10	12
D10	8 X 3.4	8 X 4.5	8 X 5.5	8 X 5.5	12 X 6.6	12 X 9	16 X 13.5
D12	46.2	63.2	89.2	109.2	139.2	199.2	254.2
L1	4	8	12	12	12	16	20
L2	6.5	8	13.5	13.5	17	22.5	30.5
L3	3	3	6	6	6	8	12
L4	19.5	19.5	30	29	38	50	66
L5	7	7	10	10	14.6	15	20
L6	4	4	7	8	10	12	18
L8	107.5	126	172.5	201	263.5	334.5	392
L9	4	6	7	7	7	10	10
L10	0.5	0.5	1	1	1	1	1
C1 ³	46	70	100	130	165	215	235
C2 ³	M4 X 0.7P	M5 X 0.8P	M6 X1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P	M12 X 1.75P
C3 ³	≤11	≤14 / ≤16	≤19 / ≤24	≤32	≤38	≤48	≤55
C4 ³	30	34	40	50	60	85	116
C5 ³ _G6	30	50	80	110	130	180	200
C6 ³	3.5	8	4	5	6	6	6
C7 ³	48	60	90	115	142	190	220
C8 ³	19.5	16	17	19.5	22.5	29	63
C9 ³	104.25	116.5	159.5	199	245.5	316	398.5
C10 ³	13.25	13.5	10.75	13	15	20.75	53.5
C11 ³	74	81.5	107.5	134	164.5	213.5	268.5

3. C1~C10 are motor specific dimensions (metric std shown).

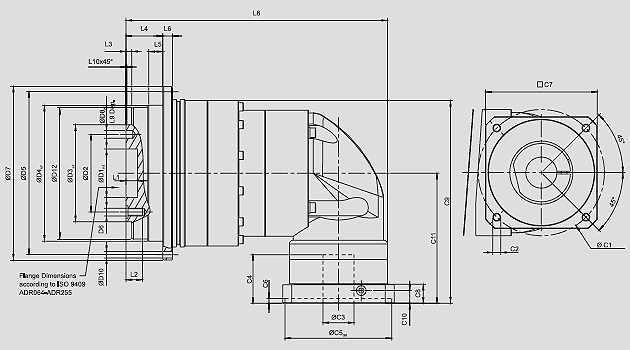

2-stage , Ratio i = 25~200

	ADR047	ADR064	ADR090	ADR110	ADR140	ADR200	ADR255
D1_H7	12	20	31.5	40	50	80	100
D2	20	31.5	50	63	80	125	140
D3_h7	28	40	63	80	100	160	180
D4_h7	47	64	90	110	140	200	255
D5	67	79	109	135	168	233	280
D6	4 X M3 X 0.5P	7 X M5 X 0.8P	7 X M6 X 1P	11 X M6 X 1P	11 X M8 X 1.25P	11 X M10 X 1.5P	12 X M16 X 2P
D7	72	86	118	145	179	247	300
D8_H7	3	5	6	6	8	10	12
D10	8 X 3.4	8 X 4.5	8 X 5.5	8 X 5.5	12 X 6.6	12 X 9	16 X 13.5
D12	46.2	63.2	89.2	109.2	139.2	199.2	254.2
L1	4	8	12	12	12	16	20
L2	6.5	8	13.5	13.5	17	22.5	30.5
L3	3	3	6	6	6	8	12
L4	19.5	19.5	30	29	38	50	66
L5	7	7	10	10	14.6	15	20
L6	4	4	7	8	10	12	18
L8	122	132.5	163	217.5	269.5	333.5	403
L9	4	6	7	7	7	10	10
L10	0.5	0.5	1	1	1	1	1
C1 ³	46	46	70	100	130	165	200
C2 ³	M4 X 0.7P	M4 X 0.7P	M4 X 0.7P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P
C3 ³	≤11	≤11 / ≤12	≤14 / ≤15.875 / ≤16	≤ 19 / ≤ 24	≤32	≤38	≤48
C4 ³	30	30	30	40	50	60	85
C5 ³ _G6	30	30	50	80	110	130	180
C6 ³	3.5	3.5	8	4	5	6	6
C7 ³	48	48	60	90	115	142	190
C8 ³	19.5	19.5	19	17	19.5	22.5	29
C9 ³	103.25	108.25	128.25	166.5	209	269.5	340
C10 ³	13.25	13.25	13.5	10.75	13	15	20.75
C11 ³	74	74	81.5	107.5	134	164.5	213.5

4. C1~C10 are motor specific dimensions (metric std shown).
