Apex Korea 감속기 AD 시리즈 AD047,AD064 외형치수

이 부분은 iframe 대응의 브라우저로 봐 주세요. st

ledt 서브메뉴화면(159픽셀)

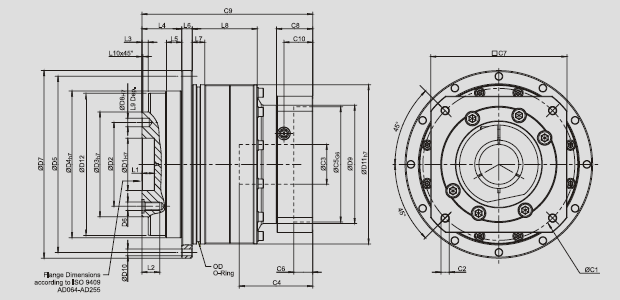

1-stage , Ratio i = 4 ~ 10

	AD047	AD064	AD090	AD110	AD140	AD200	AD255
D1_H7	12	20	31.5	40	50	80	100
D2	20	31.5	50	63	80	125	140
D3_h7	28	40	63	80	100	160	180
D4_h7	47	64	90	110	140	200	255
D5	67	79	109	135	168	233	280
D6	4 X M3 X 0.5P	7 X M5 X 0.8P	7 X M6 X 1P	11 X M6 X 1P	11 X M8 X 1.25P	11 X M10 X 1.5P	12 X M16 X 2P
D7	72	86	118	145	179	247	300
D8_H7	3	5	6	6	8	10	12
D9	45.5	55	77	90	113	138	175
D10	8 X 3.4	8 X 4.5	8 X 5.5	8 X 5.5	12 X 6.6	12 X 9	16 X 13.5
D11_h7	60	70	95	120	152	212	255
D12	46.2	63.2	89.2	109.2	139.2	199.2	254.2
L1	4	8	12	12	12	16	20
L2	6.5	8	13.5	13.5	17	22.5	30.5
L3	3	3	6	6	6	8	12
L4	19.5	19.5	30	29	38	50	66
L5	7	7	10	10	14.6	15	20
L6	4	4	7	8	10	12	18
L7	5	7.7	8	10	12	15	20
L8	18.5	28.5	27	37	62	69.5	82
L9	4	6	7	7	7	10	10
L10	0.5	0.5	1	1	1	1	1
C1 ³	46	70	100	130	165	215	235
C2 ³	M4 X 0.7P	M5 X 0.8P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P	M12 X 1.75P
C3 ³	≤11	*≤14 / ≤16	≤19 / ≤24	≤32	≤38	≤48	≤55
C4 ³	30	34	40	50	60	85	116
C5 ³ _G6	30	50	80	110	130	180	200
C6 ³	3.5	8	4	5	6	6	6
C7 ³	48	60	90	115	142	190	220
C8 ³	19.5	19	17	19.5	22.5	29	63
C9 ³	70	82.5	99.5	121.5	151	199.5	256.5
C10 ³	13.25	13.5	10.75	13	15	20.75	53.5
OD	56 X 2	66 X 2	90 X 3	110 X 3	145 X 3	200 X 5	238 X 5

3. C1~C10 are motor specific dimensions (metric std shown).
* AD064 ratio 5,10 offers C3 ≤16 option.

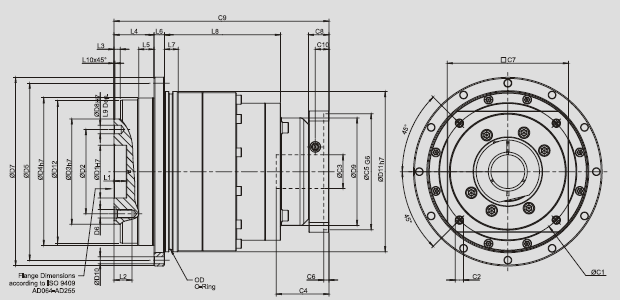

2-stage , Ratio i = 20 ~ 100

	AD047	AD064	AD090	AD110	AD140	AD200	AD255
D1_H7	12	20	31.5	40	50	80	100
D2	20	31.5	50	63	80	125	140
D3_h7	28	40	63	80	100	160	180
D4_h7	47	64	90	110	140	200	255
D5	67	79	109	135	168	233	280
D6	4 X M3 X 0.5P	7 X M5 X 0.8P	7 X M6 X 1P	11 X M6 X 1P	11 X M8 X 1.25P	11 X M10 X 1.5P	12 X M16 X 2P
D7	72	86	118	145	179	247	300
D8_H7	3	5	6	6	8	10	12
D9	45.5	45.5	53.4	77	102	125	160
D10	8 X 3.4	8 X 4.5	8 X 5.5	8 X 5.5	12 X 6.6	12 X 9	16 X 13.5
D11_h7	60	70	95	120	152	212	255
D12	46.2	63.2	89.2	109.2	139.2	199.2	254.2
L1	4	8	12	12	12	16	20
L2	6.5	8	13.5	13.5	17	22.5	30.5
L3	3	3	6	6	6	8	12
L4	19.5	19.5	30	29	38	50	66
L5	7	7	10	10	14.6	15	20
L6	4	4	7	8	10	12	18
L7	5	7.7	8	10	12	15	20
L8	54.5	65	60	87.5	110	132.5	148
L9	4	6	7	7	7	10	10
L10	0.5	0.5	1	1	1	1	1
C1 ⁴	46	46	70	100	130	165	200
C2 ⁴	M4 X 0.7P	M4 X 0.7P	M5 X 0.8P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P
C3 ⁴	≤11	*≤11 / ≤12	* ≤14 / ≤15.875 / ≤16	≤ 19 / ≤ 24	≤32	≤38	≤48
C4 ⁴	30	30	34	40	50	60	85
C5 ⁴ _G6	30	30	50	80	110	130	180
C6 ⁴	3.5	3.5	8	4	5	6	6
C7 ⁴	48	48	60	90	115	142	190
C8 ⁴	19.5	19.5	19	17	19.5	22.5	29
C9 ⁴	97.5	108	134	160	204	248	311.5
C10 ⁴	13.25	13.25	13.5	10.75	13	15	20.75
OD	56 X 2	66 X 2	90 X 3	110 X 3	145 X 3	200 X 5	238 X 5

4. C1~C10 are motor specific dimensions (metric std shown).
* AD064 ratio 20~50 offers C3 ≤12 option.
* AD090 ratio 20~50 offers C3 ≤15.875 / ≤16 option.

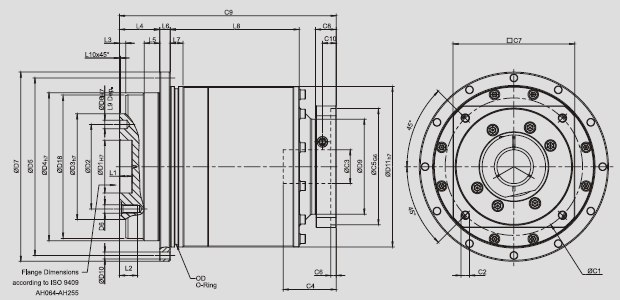

2-stage , Ratio i = 16,21,31,61,91

	AD047	AD064	AD090	AD110	AD140	AD200	AD255
D1_H7	12	20	31.5	40	50	80	100
D2	20	31.5	50	63	80	125	140
D3_h7	28	40	63	80	100	160	180
D4_h7	47	64	90	110	140	200	255
D5	67	79	109	135	168	233	280
D6	4 X M3 X 0.5P	7 X M5 X 0.8P	7 X M6 X 1P	11 X M6 X 1P	11 X M8 X 1.25P	11 X M10 X 1.5P	12 X M16 X 2P
D7	72	86	118	145	179	247	300
D8_H7	3	5	6	6	8	10	12
D9	45.5	45.5	55	77	90	113	138
D10	8 X 3.4	8 X 4.5	8 X 5.5	8 X 5.5	12 X 6.6	12 X 9	16 X 13.5
D11_h7	60	70	95	120	152	212	255
D18	46.2	63.2	89.2	109.2	139.2	199.2	254.2
L1	4	8	12	12	12	16	20
L2	6.5	8	13.5	13.5	17	22.5	30.5
L3	3	3	6	6	6	8	12
L4	19.5	19.5	30	29	38	50	66
L5	7	7	10	10	14.6	15	20
L6	4	4	7	8	10	12	18
L7	5	7.7	8	10	12	15	20
L8	52.5	28.5	32	37	122	79.5	82
L9	4	6	7	7	7	10	10
L10	0.5	0.5	1	1	1	1	1
C1 ⁵	46	46	70	100	130	165	215
C2 ⁵	M4 X 0.7P	M4 X 0.7P	M5 X 0.8P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P
C3 ⁵	≤11	*≤11 / ≤12	* ≤14 / ≤15.875 / ≤16	≤ 19 / ≤ 24	≤32	≤38	≤48
C4 ⁵	30	30	34	40	50	60	85
C5 ⁵ _G6	30	30	50	80	110	130	180
C6 ⁵	3.5	3.5	8	4	5	6	6
C7 ⁵	48	48	60	90	115	142	190
C8 ⁵	19.5	19.5	19	17	19.5	22.5	29
C9 ⁵	100	106	130.5	149	205	247.5	323
C10 ⁵	13.25	13.25	13.5	10.75	13	15	20.75
OD	56 X 2	66 X 2	90 X 3	110 X 3	145 X 3	200 X 5	238 X 5

5. C1~C10 are motor specific dimensions (metric std shown).
* AD064 ratio 16~31 offers C3 ≤12 option.
* AD090 ratio 16~31 offers C3 ≤15.875 / ≤16 option.
