Apex Korea 감속기 AB 시리즈 AB042,AB060

이 부분은 iframe 대응의 브라우저로 봐 주세요. st

ledt 서브메뉴화면(159픽셀)

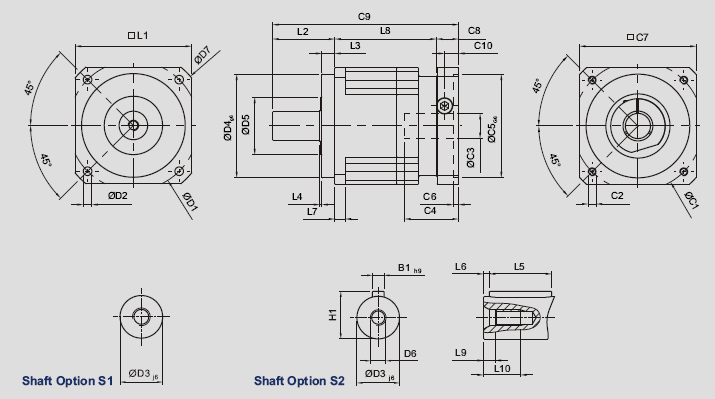

1-stage , Ratio i = 3 ~ 10 image/AB-Dimension-s1.gif

	AB042	AB060	AB090	AB115	AB142	AB180	AB220
D1	50	70	100	130	165	215	250
D2	3.4	5.5	6.6	9	11	13	17
D3 _j6	13	16	22	32	40	55	75
D4 _g6	35	50	80	110	130	160	180
D5	22	45	60	80	75	95	115
D6	M4 X 0.7P	M5 X 0.8P	M8 X 1.25P	M12 X 1.75P	M16 X 2P	M20 X 2.5P	M20 X 2.5P
D7	56	80	116	152	185	240	292
L1	42	60	90	115	142	180	220
L2	26	37	48	65	97	105	138
L3	5.5	7	10	12	15	20	30
L4	1	1.5	1.5	2	3	3	3
L5	16	25	32	40	63	70	90
L6	2	2	3	5	5	6	7
L7	4	6	8	10	12	15	20
L8	31	61	78.5	102	119.5	154	163.5
L9	4.5	4.8	7.2	10	12	15	15
L10	10	12.5	19	28	36	42	42
C1 ³	46	70	100	130	165	215	235
C2 ³	M4 X 0.7P	M5 X 0.8P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P	M12 X 1.75P
C3 ³	≤11	*≤14 / ≤16	≤19 / ≤24	≤32	≤38	≤48	≤55
C4 ³	25	34	40	50	60	85	116
C5 ³ _G6	30	50	80	110	130	180	200
C6 ³	3.5	8	4	5	6	6	6
C7 ³	42	60	90	115	142	190	220
C8 ³	29.5	19	17	19.5	22.5	29	63
C9 ³	86.5	117	143.5	186.5	239	288	364.5
C10 ³	8.75	13.5	10.75	13	15	20.75	53
B1 _h9	5	5	6	10	12	16	20
H1	15	18	24.5	35	43	59	79.5

3. C1~C10 are motor specific dimensions (metric std shown).
* AB060 ratio 5,10 offers C3 ≤16 option.

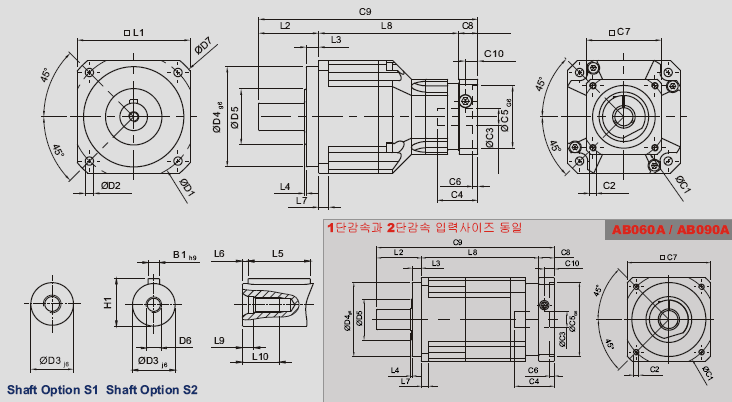

2-stage , Ratio i = 15 ~ 100

	AB042	AB060	AB060A	AB090	AB090A	AB115	AB142	AB180	AB220
D1	50	70		100		130	165	215	250
D2	3.4	5.5		6.6		9	11	13	17
D3 _j6	13	16		22		32	40	55	75
D4 _g6	35	50		80		110	130	160	180
D5	22	45		65		95	75	95	115
D6	M4 X 0.7P	M5 X 0.8P		M8 X 1.25P		M12 X 1.75P	M16 X 2P	M20 X 2.5P	M20 X 2.5P
D7	56	80		116		152	185	240	292
L1	42	60		90		115	142	180	220
L2	26	37		48		65	97	105	138
L3	5.5	7		10		12	15	20	30
L4	1	1.5		1.5		2	3	3	3
L5	16	25		32		40	63	70	90
L6	2	2		3		5	5	6	7
L7	4	6		8		10	12	15	20
L8	58.5	72	98	111.5	126.5	143.5	176	209.5	248
L9	4.5	4.8		7.2		10	12	15	15
L10	10	12.5		19		28	36	42	42
C1 ⁴	46	46	70	70	100	100	130	165	215
C2 ⁴	M4 X 0.7P	M4 X 0.7P	M5 X 0.8P	M5 X 0.8P	M6 X 1P	M6 X 1P	M8 X 1.25P	M10 X 1.5P	M12 X 1.75P
C3⁴	≤11	*≤11 / ≤12	≤14 / ≤16	* ≤14 / ≤15.875 / ≤16	≤19 / ≤24	≤19 / ≤24	≤32	≤38	≤48
C4 ⁴	25	25	34	34	40	40	50	60	85
C5 ⁴ _G6	30	30	50	50	80	80	110	130	180
C6⁴	3.5	3.5	8	8	4	4	5	6	6
C7 ⁴	42	42	60	60	90	90	115	142	190
C8 ⁴	29.5	29.5	19	19	17	17	19.5	22.5	29
C9 ⁴	114	138.5	154	178.5	191.5	225.5	292.5	337	415
C10 ⁴	8.75	8.75	13.5	13.5	10.75	10.75	13	15	20.75
B1 _h9	5	5		6		10	12	16	20
H1	15	18		24.5		35	43	59	79.5

4. C1~C10 are motor specific dimensions (metric std shown).
* AB060 ratio 15~50 offers C3 ≤12 option.
* AB090 ratio 15~50 offers C3 ≤15.875 / ≤16 option.
