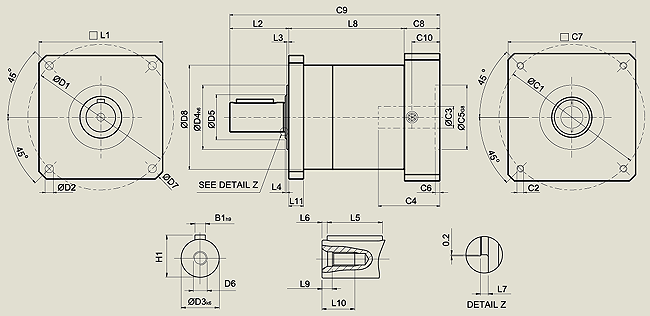

DIMENSION

PN023

PN034

PN042

PN056

PN075

D1

66.675

98.425

125.73

177.8

215.011

D2

5.2

5.6

7.1

10.4

14.2

D3 h6

12.7

19.05

25.4

38.1

50.8

D4 h6

38.1

73.025

55.5

114.3

152.4

D5

17

25

40

50

65

D6

M4X0.7P

M5X0.8P

M8X1.25P

M12X1.75P

M16X2P

D7

75

107.5

142

198

260

D8

50

70

90

120

155

L1

57.15

82.55

106.68

146.05

190

L2

31.75

38.1

50.8

63.5

88.9

L3

1.6

1.6

1.6

3.2

4.75

L4

1

1.5

1.5

2

2

L5

19.05

25.4

31.75

38.1

63.5

L6

3.788

3.8

5.715

8.563

8.563

L7

1

1

1.5

2

2

L8

1-stage

58.9

82

99.3

133.7

153.05

2-stage

83.4

115

138.8

186.7

213.55

L9

4.5

4.8

7.2

10

12

L10

10

12.5

19

28

36

L11

6.4

7.9

12.7

19.05

22.2

C1

66.675

98.425

125.73

149.225

165

C2

M4X0.7P

M5X0.8P

M6X1P

11 Thru

M10X1.5P

C3

≤12

≤16

≤24

≤32

≤38

C4

32

40

51

55

60

C5 G6

38.15

73.08

55.65

114.3

130

C6

3.5

4

4

4

6

C7

55

85

110

130

157

C8

23.5

27.5

31

29

31

C9

1-stage

114.15

147.6

181.1

226.2

272.95

2-stage

138.65

180.6

220.6

279.2

333.45

C10

16.5

21.5

24

21

21

B1 h9

3.175

4.763

6.35

9.525

9.525

H1

14.125

21.163

28.2

42.275

55.125
